ELECTRICAL STANDARDS IN POWER SYSTEM DESIGN & ANALYSIS

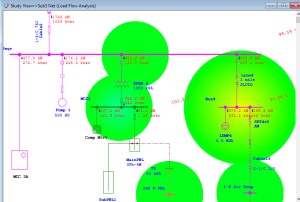

Load Flow Study
To size equipment (cables, transformers), determine voltage profiles, calculate losses, and optimize configuration.

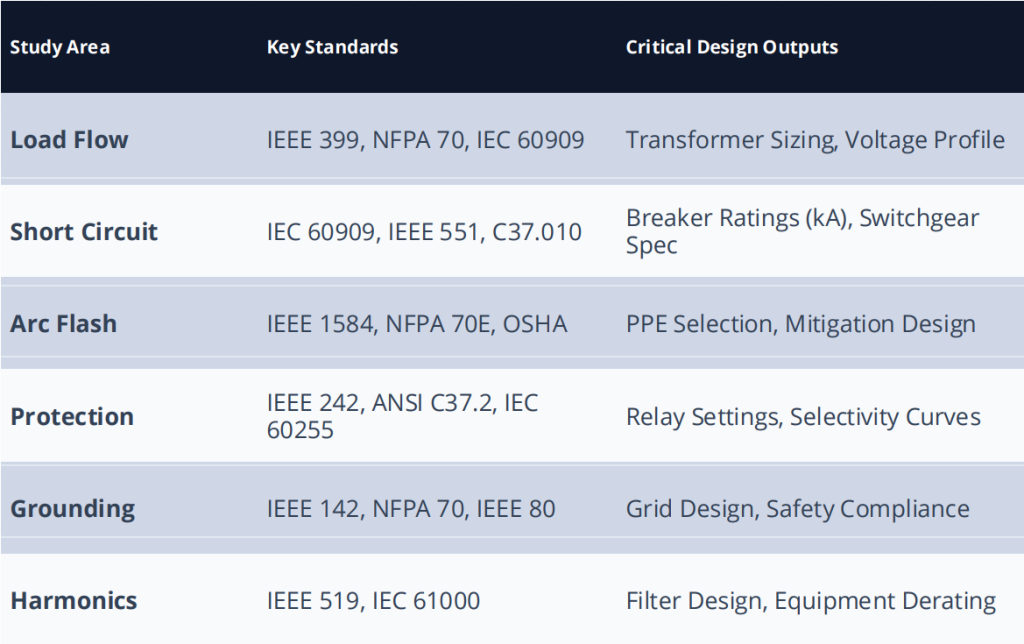

Key Standards
IEEE 399 (Brown Book): The definitive guide for industrial power system analysis methodology.
IEC 60909: Framework for pre-fault network conditions.
NFPA 70 (NEC): Articles 210, 215, 230 drive decisions on voltage drop and ampacity.
Short Circuit Study
Specify interrupting and withstand ratings for breakers and switchgear. Basis for protective relay settings.
Key Standards
IEC 60909: International standard for SC current calculation.
ANSI/IEEE C37: Guides for HV/LV breaker ratings.
IEEE 551 (Violet Book): Methods for industrial calculations.
Arc Flash Study
Determine Arc Flash Boundary and Incident Energy to select PPE and design mitigation systems.
Key Standards
IEEE 1584: Empirical models for calculating incident energy.
NFPA 70E: Workplace safety requirements based on risk assessment.
OSHA 29 CFR 1910: Regulatory enforcement backbone for safety.
Protection Coordination
Isolate the smallest portion of the network during a fault to minimize downtime and improve reliability.
Key Standards
ANSI/IEEE C37.2: Universal device numbers (50, 51, 87) for protection functions.
IEEE 242 (Buff Book): Guide for protection principles and selectivity.
IEC 60255: Performance and testing standards for relays.
Motor Acceleration
Assess starting current impact on voltage, ensure successful starting, and size overload protection.
Key Standards
IEEE 141 (Red Book): Guidance on starting methods and voltage drop.
IEC 60034: Rotating electrical machine performance data.
NFPA 70 Art 430: Requirements for motor circuits.
Grounding System Design
Ensure personnel safety, provide low-impedance fault paths, and stabilize system voltage.
Key Standards
IEEE 142 (Green Book): Definitive guide for industrial/commercial grounding.
NFPA 70 Art 250: Mandated code for bonding and conductor sizing.
IEEE 80: Critical safety guide for AC substation grounding.
Harmonic Analysis & Filters
Mitigate power quality issues like voltage distortion that cause equipment overheating and malfunction.
Key Standards
IEEE 519: Requirements for harmonic control; used to specify filters.
IEC 61000-3-2/6: Limits for harmonic currents from equipment.
IEEE 1159: Monitoring electric power quality phenomena.
