power system protection enclosure:

OMICRON IEC 61850 R&D Team

The following Pictures show the OMICRON team are working with IEC 61850 standards,

power system protection enclosure

Protection Relay Testing by Omicron

This picture shows a relay test man is testing the SIPROTEC 4 and SIPOTEC 5 relays wit Omicron CMC Test Kit

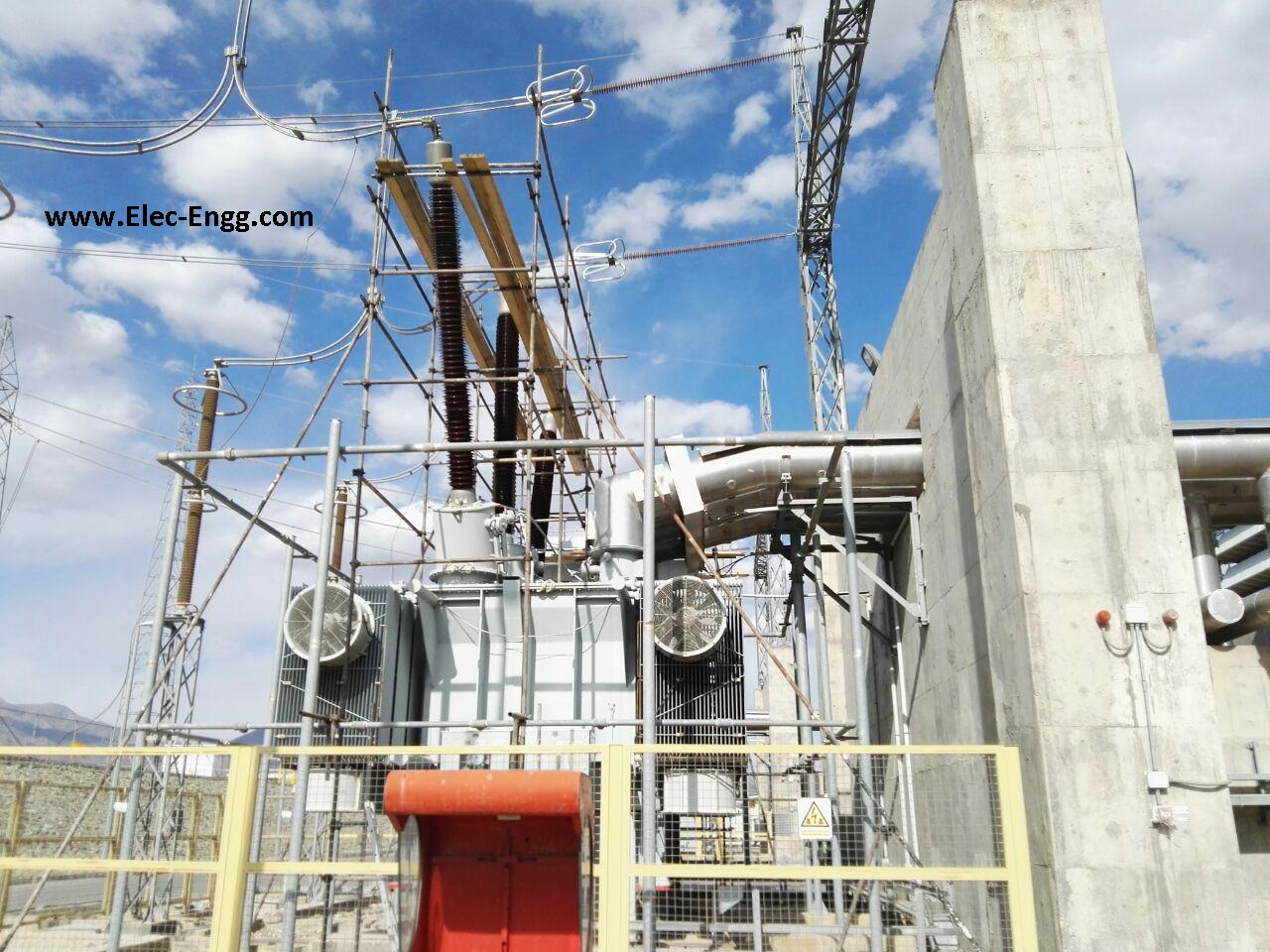

This pictures shows a power transformer in a HV substation

Line Protection with GE relay

Hardware failure for CMC 356 : Warning! The hardware self-test identified that the following current generators are out of tolerance or defective:
Current output / Group
The affected group will be disabled now. All generators of the non-affected groups can still be used.
Caution! Although the affected groups are disabled now they might carry dangerous currents! might carry dangerous currents!
If the problem persists it is highly recommended to send in the test set for repair. Online operation is enabled anyhow.

Areva or Schneider Electric relays in a cubicle

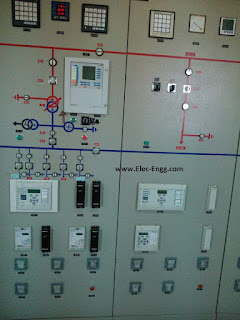

Substation Automation system and SEL relays in a substation

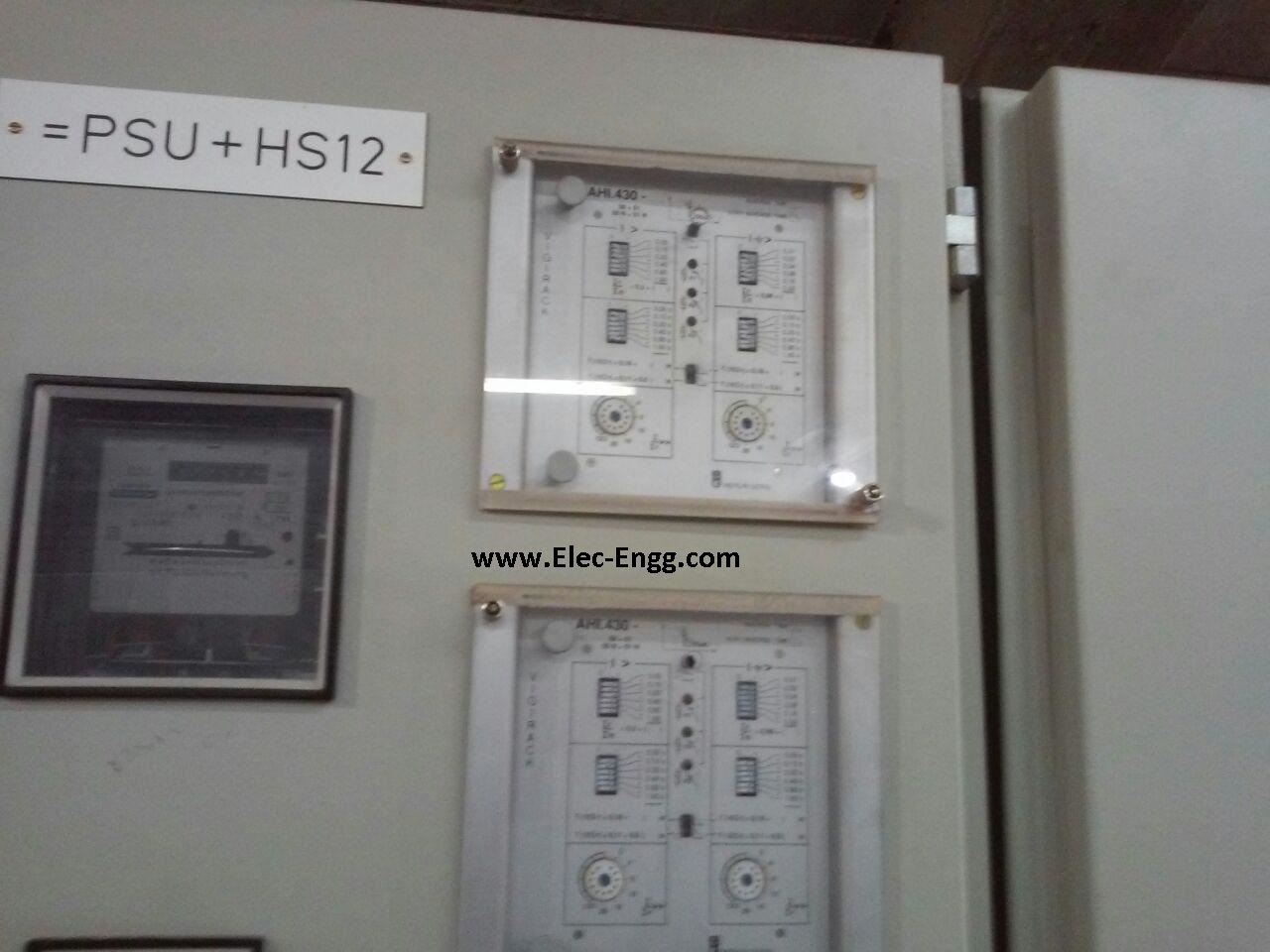

BBC Over current relay

Microelecttrica sciendtifica Milano Italia

Philosophy of a good relay protection settings for machines and plants – on photo : ABB Protection relay REF 542 Plus

SIEMENS SIPROTEC 4 Relay

SIEMENS SIPROTEC 5 Relay

Online SIEMENS SIPROTEC 5 relay

SIGRA 4 needs serial number to activate ; you can register your digsi with a valid serial number along with SIGRA 4 software
